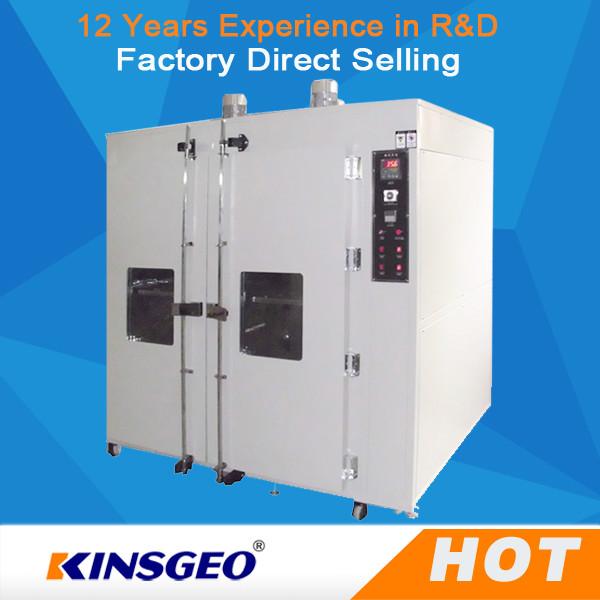

380V Electronic Stainless Steel Environmental Test Chambers 25 Liter
Inner size and structure:
Inner size: 90×60×120cm(W×D×H)
Outside size: 110*75*186cm (W×D×H)
Power:220/380V
Heating power:about KW
1.The controller is located in the right side of the machine,opened in the centre with two doors, luxury handle is stainless steel,more important,the machine has the anti-explosion door holder.
2.Inner material is 304 mirror surface stainless steel. Lumen of the machine is clean and smooth,it’s easy to clean and do not keep residue, corrosion resistance function is very good.All the inner material is low- infectant material.Inner machine all has the non-trace argon arc welding
3.Outside material is SECC armor plate,thickness of plating is 1.2mm baking finish with Fine powder.
Heat preservation is imported high density glass rock wool, thermal insulation is very good,can resist the 150℃.
Temperature control system:
1. Temperature controller is PID microcomputer auto-calculation,showing by PV/SV,Set the temperature you need,control the accuracy by PID parameter.
2. current controller is SSR,contactless Relay,keep the voltaic high stability.
3. Heating material is honeycomb stainless steel heating tube,and pollution-free with long using life. 4. Temperature range:RT～400℃(Customise),normal temperature RT～350℃(Customise),.
5. Accuracy:contral accuracy±0.5℃,distribution temperature ±2.0℃(no-load)
Air supply system:
Moter long axis thermostability is imported from Taiwan,rate of work is 1/2HP50Hz
The fan is leafiness turbine type,strong strength,has adjustable river diversion wind-plate Make the wind path smoothly.
Heating speed:RT～100℃ about 10minutes.
Accessories:
superhigh temperature protection, non fuse-switch, porcelain fuse,motor overcurrent protection
Timer:9999s~9999hour(can set by H.M.S)
Timer when the temperature is ok,outage when the time is ok,stop heating and alarm.
Product accessories:
| 1 | heat preservation | Import high density aluminium silicate cellucotton 80K |
| 2 | Foot cup | 10*40 |
| 3 | air exhaust shell | stainless steel #120 |
| 4 | Dustproof door | thermostability |
| 5 | faceplate | AtypeB type |
| 6 | thermal fuse | Import nichrome |
| 7 | Temperature sense line | 2M |
| 8 | motor | 150FL-7 Taiwan Tonghe |
| 9 | wind wheel | 6"B direction |
| 10 | thermoregulator | 96*96 6831 Taiwan Yangming |
| 11 | Super-high temperature protection | ESL2 400℃ Japan Omron |
| 12 | Solid State Relay(SSR) | 40A Taiwan Yangming |
| 13 | A.C contactor | 1810 Changhong |
| 14 | Thermal protection | 2.5A-4.2A |
| 15 | Timer | Japan Omron |
