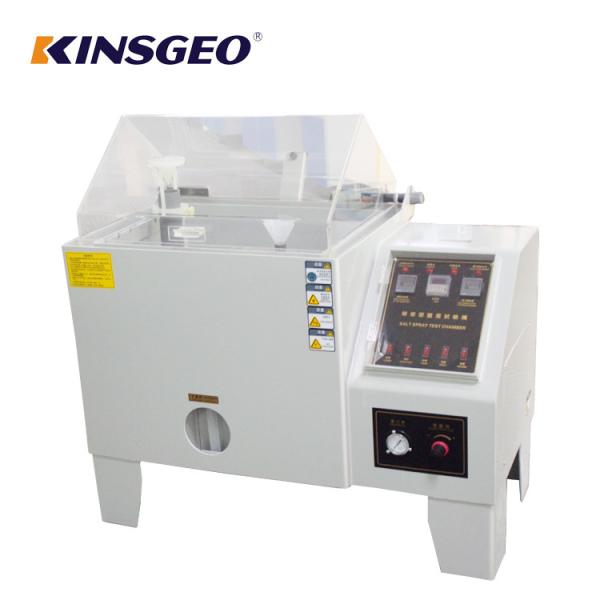

Anti Corrosion Salt Spray Test Chamber For Powder Coating Salt Spray Fog Test Water Spray Test Chamber
Product introduction:
Salt spray test machine is applicable for various kinds material’s surface treatment , such as after coating , electroplate , inorganic and organic membrane dermails , negative pole with antirust oil treatment etc anti-corrosive treatment to test the corrosion-resistance of the product
Design standard :
CNS : 3627 , 3385 , 4159 , 7669 , 8886 ;
JIS : D0201 , H8502 , H8610 , K5400 , Z2371 ;
ISO : 3768 , 3769 , 3770 ;
ASTM : 8117 , B268 .
Control System:
High precision P . I . D . temperature control meter with its error ±0 . 1°C .
Purpose :
Salt spray test machine is applicable for the salt spray corrosive test for the protection layer of components , parts , electronic and electrical parts and metal materials and industrial products
Chamber Structure:
1 . Salt spray test machine cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample .
2 . A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow .
3 . Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement .
Main technical parameters :
Inner box size :
( L×W×H ) cm | 60×40×45 | 90×60×50 | 120×100×50 |
Outside box size :
( L×W×H ) cm | 107×60×118 | 141×88×128 | 190×130×140 |
| Equipment material : | Both internal and external material is using imported P . V . C rigid plastic board ; the case cover is using transparent rigid plastic board P . V . C . |
| Temperature range : | 35°C~55°C |
| Temperature fluctuations : | ≤±0 . 5°C |
| Temperature uniformity : | ≤±2°C |
| Temperature precision : | ±1°C |
| Test chamber temperature | NSS ACSS 35±1°C CASS : 50±1°C |
| Saturated air barrel temperature : | NSS ACSS 47±1°C CASS 63±1°C |
| Brine temperature : | 35°C±1°C |
| Spray quantity : | 1 . 0~2 . 0 ml / 80cm2 / hr |
| PH : | NSS ACSS6 . 5~7 . 2 CASS 3 . 0~3 . 2 |
| Lab volume : | 108L | 270L | 600L |
| Brine tank capacity : | 15L | 25L | 40L |
| Power : | 1AC220V , 10A | 1AC220V , 15A | AC 1 , 220V , 30A |
| Multiple safety protection devices : | Water shortage/ over temperature / phase protection |
| Standard accessories : | Test salt , measure bucket , tool etc 1 set |
Specifications:
Salt Spray Corrosion Test Machine
1 . Durable hard PVC construction
2 . Anti-corrosion ,
3 . Easy clean & operate
4 . 1 years warranty
Features :
1 Durable hard PVC construction , anti-corrosion , easy to clean .
2 Reservoirs with mixing system on stand .
3 Cabinet heated by water jacket , heating element from USA famous company .
4 Separate heating system , be apart from salt testing chamber to ensure accurate result and protect circuit .
5 Exposure zone lined with corrosion-resistant PVC sheets .
6 Clear cover allows viewing of test conditions .
7 Peaked cover prevents dripping of condensation onto samples .
8 Water seal and water level protection system .
9 Heated humidifying tower with air relief valve , adjustable tower tip to orient salt fog .
10 Automatic DI water fill to humidifying tower .
11 Digital temperature control and readouts .
12 Integral over-protection on all heaters .
13 Low water cut-off protection on humidifying tower .
Our Services
KeJian Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-con.
Onsite Service:
1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment
