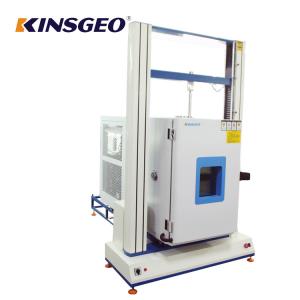

KEJIAN 2kg Tensile Universal Testing Machine High Temperature Machine

Name: KEJIAN 2kg Tensile Universal Testing Machine High Temperature Machine
Brand: KEJIAN
Price: 1 USD

Wholesale KEJIAN 2kg Tensile Universal Testing Machine High Temperature Machine from china suppliers

Brand Name : KEJIAN

Model Number : KJ-1067

Certification : ISO,CE and etc.

Place of Origin : Dongguan,China

MOQ : 1 Unit

Price : Negotiate

Payment Terms : T/T, Western Union, MoneyGram, L/C, T/T

Supply Ability : 5000 Sets/Year

Delivery Time : In stock,3-7 working days after we confirmed order

Packaging Details : Each set protected with resin fiber and PP film, then put into professional export Strong plywood case

Control stability : ±2.5%RH, 1℃

Degree of load decomposition : 1/25,000

ACCURACY : ±0.5%

CAPACITY : 5, 10, 50, 100, 200, 500, 1000, 2000, 5000kg

Size of inner box : 40×40×70cm(customized)

APLICATION : Rubber ,plastic ,nylon ,leather And Etc

Contact Now

2kg Tensile Testing Machine Temperature and Humidity Universal Test Equipment

Feature:

Peel strength Tester KJ-1067 combines high-low temperature tester with peel strength tester wonderfully. It can restrain the error brought by changing environment between testing process. Setting up different fixtures can test 180&90 degree peeling strength, separating force,ect. for the adhesive material in the high-low temperature environment. This machine can be changed into programmable temperature&humidity tester according to your needs.

Character:

1. The structure is made of the paint-coated aluminium blanking plate. The interior is used the high-accuracy,low-resistance and zero clearance of two ball screw and oriented pole which improve loading efficience and structure rigidity.

2. The Motor use Panasonic seveo motor which ensure high efficiency,steady transmission and low noise. The accuracy of speed can be controled in 2%.

3. That Using the business computer as the main control mathine plus the special testing software of our campany can conduct all of testing parameter, work state, collecting data&analysis, result display and printing output.

4. Have steady performace, high accuracy, powerful software function and easy operation.

5. Use double insulated glass, user-friendly observing test; Adopt stainless steel frame and bladder, not only beauty but corrosion resistance.

Product Description

Temperature range	-40°C-150°C
Humidity range	20%HR-98%RH
Capacity	2,5,10,20,50,100,200,500,1000kg
Choosing capacity	3 to 10 times of the most value about the specimen damage
Unit	g,kg,N,KN,LB( switchover free)
Operation method	Windows operation
Resolution	1/2500,000
Accuracy	≤0.5%
Testing speed	1~500mm/min
Stroke	400,500,600mm(Height can be customed)
Test width	40cm(can be changed by customer needs)
Test space	(L×W×H)40×40×70cm
Motor	Panasonic servo motor
Kind of drive	high-precision ball screw
Dimension	(W×D×H)1200×600×1500mm
Weight	200kg
Power	1φ,220V/50Hz
Rate of work	0.4KW(depend on motor model)
Clamp	customize by customer needs(tensile and compressive clamp)

KeJian Instrument Service:

Onsite Service:
1.Device installation 2.Equipment Operation Test Technology training 3. Equipment Calibration 4.Daily maintenance and maintenance of equipment
Free technical training for visiting factories 24-hour Online contact
Free software upgrades
Free information:
1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)
Device Problem Handling:
1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service
